    TAGLIACAGLIATA

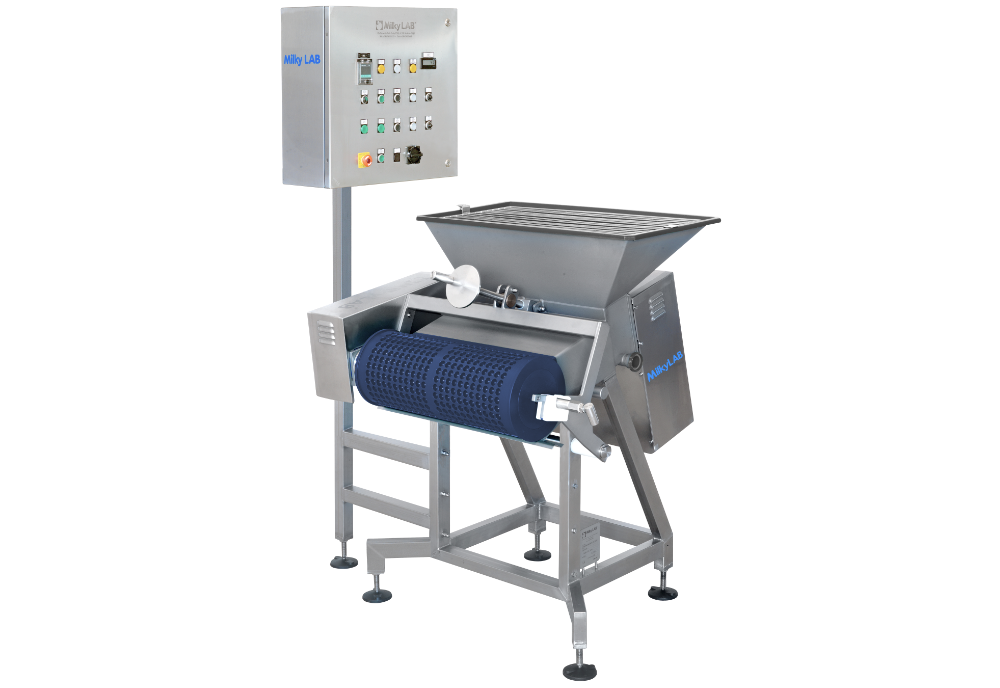

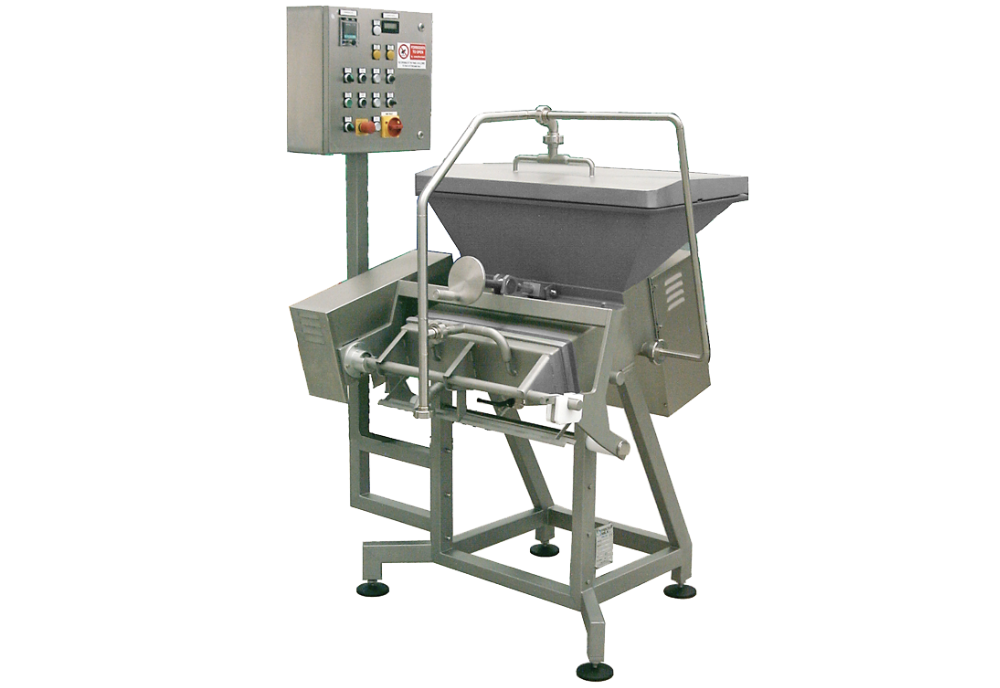

    LAB 24/40

    Products

    Mozzarella, Buffalo mozzarella, Pizza cheese, Cherries, Burrata, Continuous cords, Twisted cheese, Flat dough, String cheese and Spaghetti cheese



    ADVANTAGES:

    • Wide range of moulding rollers

    • Moulding rollers with special shapes

    • High hourly production output

    • Easy to change moulding rollers

    Technical features

    • It is suitable for moulding soft pasta-filata cheeses which are mainly round in shape, when it is required an high hourly production
    • Entirely built in AISI 304 stainless steel
    • An electrically-heated jacket allows the product to be kept constantly at theideal moulding temperature
    • N. 4 augers diam. 150 mm built in AISI 304 stainless steel
    • Moulding roller diameter 245 mm, 650 mm long, built in polyetilene high density, certified for food contact
    • The moulding rollers and augers are speed adjustable
    • The parts in contact with the product are entirely teflon-coated in order tobe non-stick
    • Electronical control panel manufactured in AISI 304 stainless steel IP 65 protection
    • Thermoregulator with a digital display to control the temperature inside the jacket
    • Electronic rev counter with a digital display, to calculate the turns of the moulding roller / the number of the products
    • Safety sensors and protection according to the CEE rules

    – OPTIONAL:

    • CIP WASHING: Preparation for CIP washing using lids and washing diospheres

    Technical Data

    Hourly output600 – 1.500 kg/hour Depends on the shape / the weight of the product
    Dimensionscm 130 x150x190 h
    Weight240 kg
    Electric power4.5 kW
    MaterialAISI 304 stainless steel

    ACCESSORIES

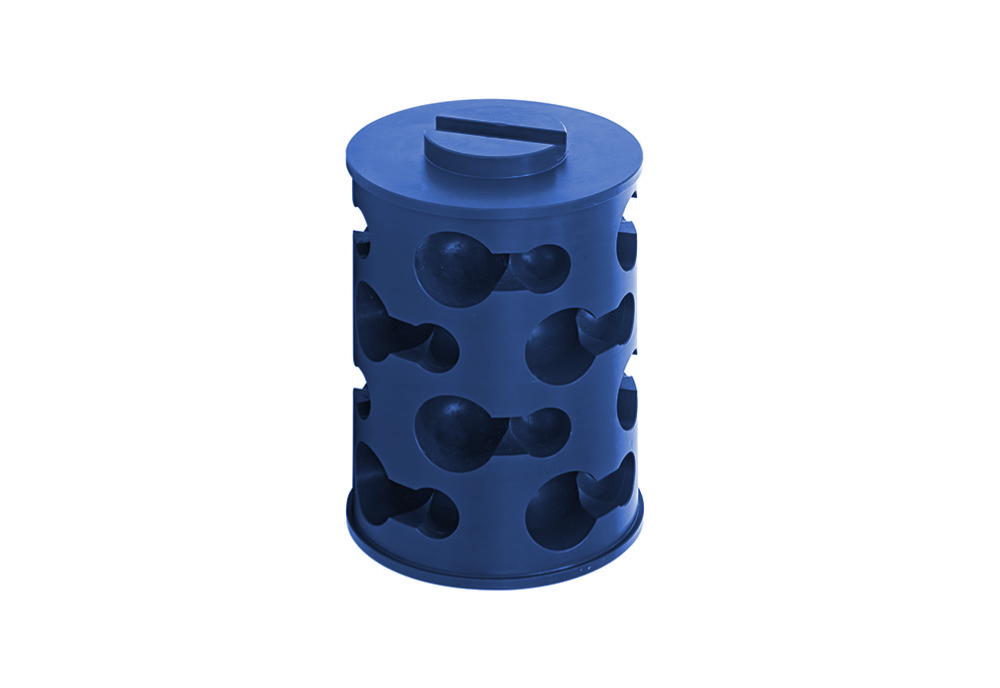

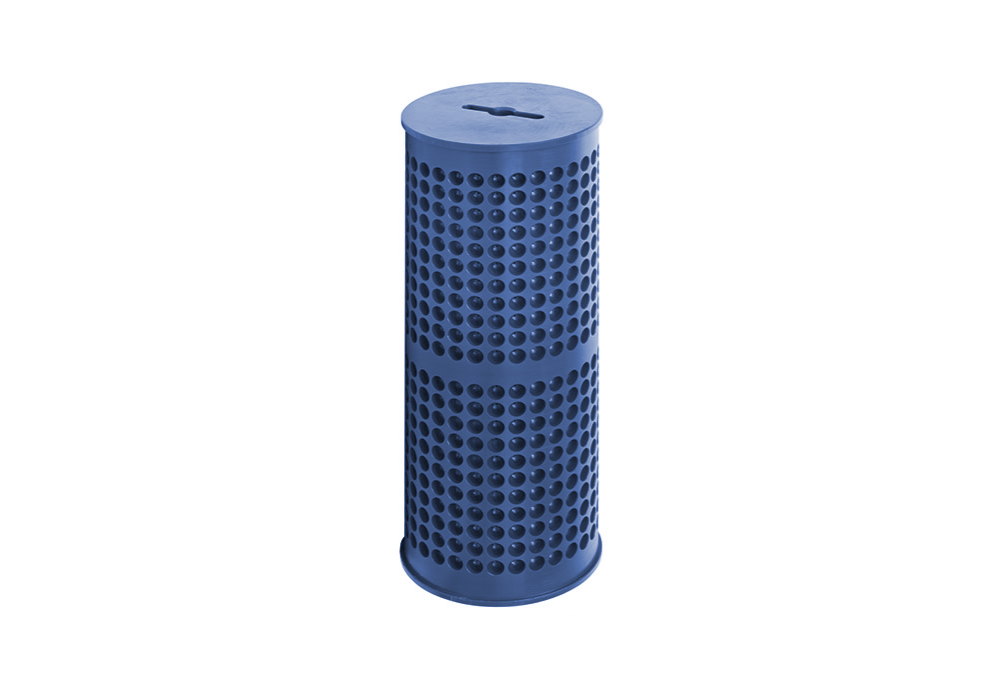

    Moulding roller for mozzarella balls from 1 gr up to 650 gr

    Moulding roller for pizza cheese up to 2 kg

    Moulding roller for special shapes

    Moulding roller for string cheese

    Conveyor for continuous cords, twisted cheese and flat dough

    Pneumatic conveyor for blocks up to 3,5 kg

    Dosing system for burrata

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation.
    Certified for 3A Sanitary standard.
