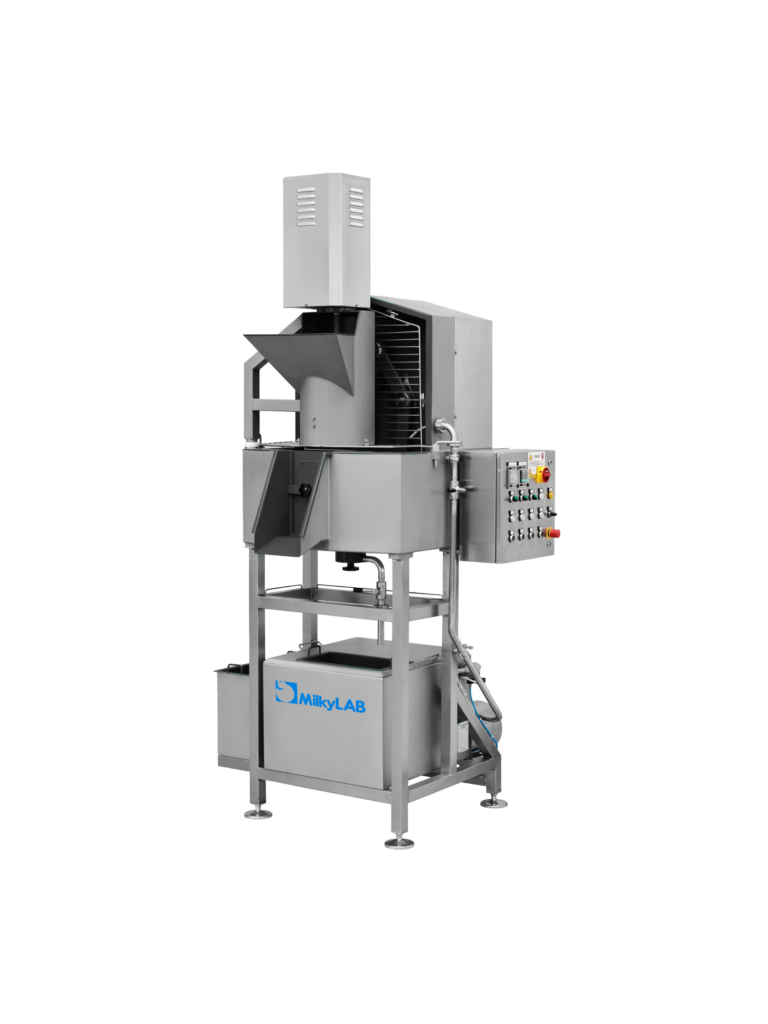

    TAGLIACAGLIATA
    LAB 12

    Products

    Mozzarella, Buffalo mozzarella, Burrata, Cherries and Pizza cheese



    ADVANTAGES:

    • It is suitable for the production of pasta filata cheese with high moisture content such as mozzarella and buffalo mozzarella
    • The stretching process is easy and versatile
    • The machine is equipped with an incorporated hot water preparer
    • It is suitable for processing curd from cow and buffalo milk

    Technical features

    • Entirely built in AISI 304 stainless steel
    • Discontinuous cooker-strecher by hot water injection
    • The kneading section is equipped with N. 2 kneading arms, moving with variable speed by inverter, allow the product to acquire the desired structure
    • The parts in contact with the product are entirely teflon-coated in order to be non-stick
    • Electronical control panel manufactured in AISI 304 stainless steel with IP 65 protection
    • Thermoregulator with a digital display to control the temperature
    • Safety sensors and protection according to the CEE rules

    – OPTIONAL:

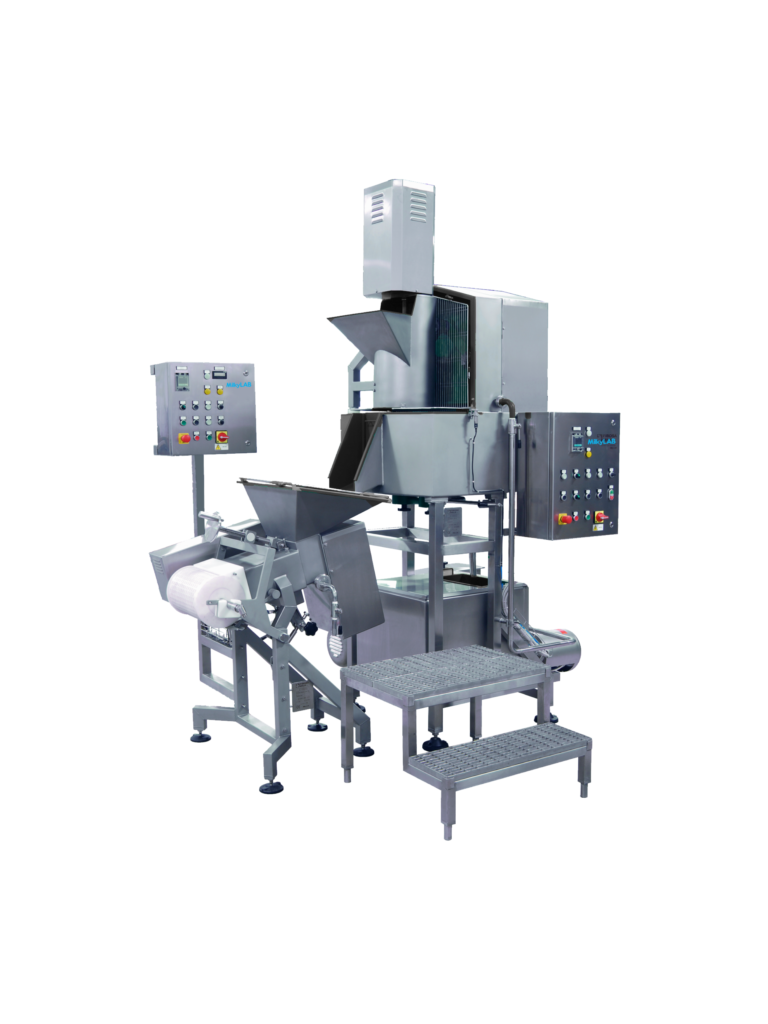

    • CURD CUTTER MOD. LAB 02: Entirely built in AISI 304 stainless steel and has the function of cutting curd into optimum-sized slices for the next stage in the cooking-stretching process
    • HOT WATER PREPARER: Suitable for supplying the necessary quantity of hot water to the cooker-stretcher.
    • ADDITIONAL VAT FOR WHEY DISCHARGE
    • BRAZED HEAT EXCHANGER

    Costruita completamente in acciaio inox AISI 304 e disco porta lame in lega di alluminio anticorodal teflonata.

    REGOLAZIONI POSSIBILI
    – tempo di pausa e taglio (2 timer indipendenti),
    – spessore delle fette (regolando la distanza tra il disco portalame e le lame stesse).

    PRODUZIONE: fino a 1500 Kg/h.

    IGIENE DI PRODUZIONE
    La costruzione della macchina permette l’immediata ispezione visiva di ogni parte, nonché il rapido e agevole lavaggio.
    La macchina può essere costruita secondo la normativa sanitaria americana 3A

    Technical Data

    Hourly output200 kg/h
    from 15 up to 50 kg / batch
    Dimensionscm 80 x 100 x 230 h
    Vat capacity70 lt
    Steam consumption50/75 kg/h
    Hot water preparer capacity150 lt
    Weight350 kg
    Electric power3.7 kW
    MaterialAcciaio inox AISI 304

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation
